Place of Origin : China
Brand Name : yangft
MOQ : 1
Price : negotiable
Delivery Time : 10 DAYS
Payment Terms : Western Union, MoneyGram, T/T
2000-4000 kg
3000 mm
17-18 km/h
2240-2530 mm
Material handling in warehouses, logistics centers and distribution centers.

| Model | |||||||||
| Characteristics | Power | Electric | |||||||
| Capacity | kg | 2000 | 2500 | 3000 | 3500 | 4000 | |||
| Load Centre | mm | 500 | 500 | 500 | 500 | 500 | |||
| Lift Height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | |||
| Min. Turning Radius | mm | 2240 | 2240 | 2445 | 2495 | 2530 | |||
| Performance | Travel Speed | Load | km/h | 17 | 17 | 19 | 19 | 18 | |
| Lift Speed | Load | mm/s | 500 | 500 | 450 | 450 | 380 | ||
| Gradeability | % | 20 | 20 | 20 | 20 | 20 | |||
| Dimensions | Total Width | With fork | L1+L2 | mm | 3810 | 3810 | 3775 | 3820 | 3920 |
| Without fork | L2 | mm | 2650 | 2650 | 2705 | 2750 | 2850 | ||
| Total Length | mm | 1160 | 1160 | 1225 | 1225 | 1225 | |||
| Max. Lifting Height | h4 | mm | 4220 | 4220 | 4265 | 4265 | 4275 | ||
| Mast Height | h | mm | 3000 | 3000 | 3000 | 3000 | 3000 | ||
| Chassis | Tyre | Front | 7.00-12-12PR | 7.00-12-12PR | 28×9-15-12PR | 28×9-15-12PR | 250-15-16PR | ||
| Rear | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | 6.50-10-10PR | ||||
| Wheelbase | L3 | mm | 1600 | 1600 | 1700 | 1700 | 1800 | ||
| Service Weight | No load | kg | 3550 | 3750 | 4380 | 4680 | 5050 | ||
| Power | Battery | Electric tension | V | 76.8 | 76.8 | 76.8 | 76.8 | 76.8 | |
| Capacity | Ah | 175 | 205 | 230 | 230 | 280 | |||
| Motor | Oil pump motor | kW | 12 | 12 | 12 | 12 | 14 | ||
| Traction motor | kW | 10 | 10 | 10 | 10 | 13 | |||
|
|

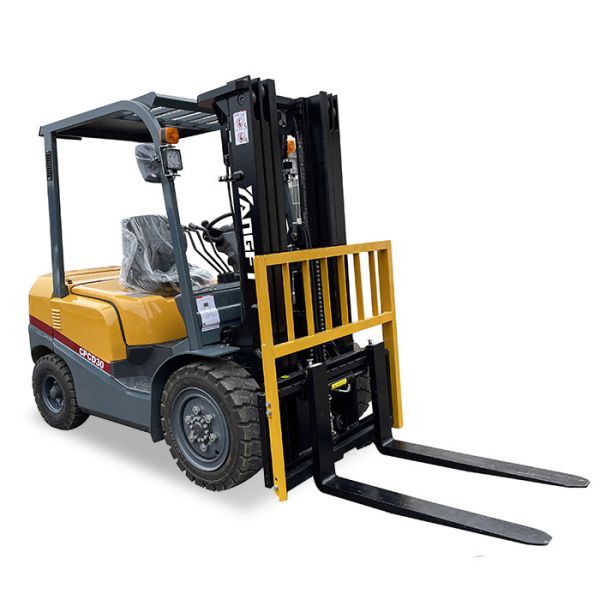

T Series Electric Forklift 2-4 Tonne CPCD20 CPCD25 CPCD30 CPCD35 CPCD40 Images |
